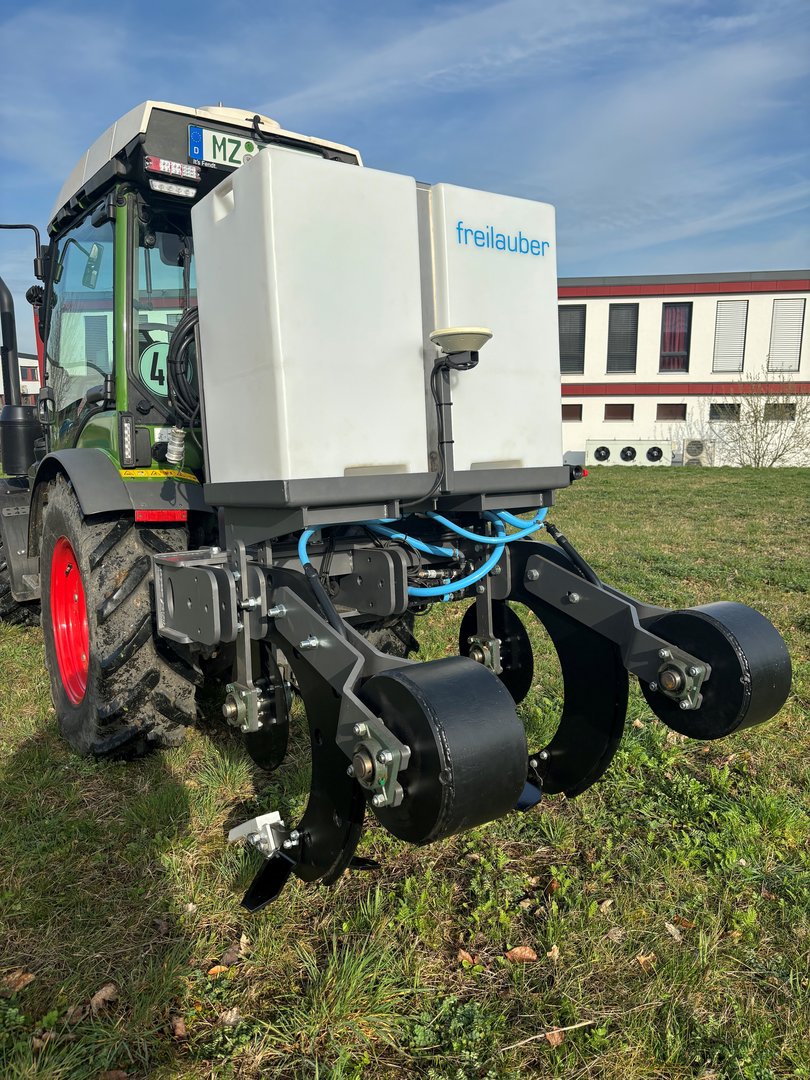

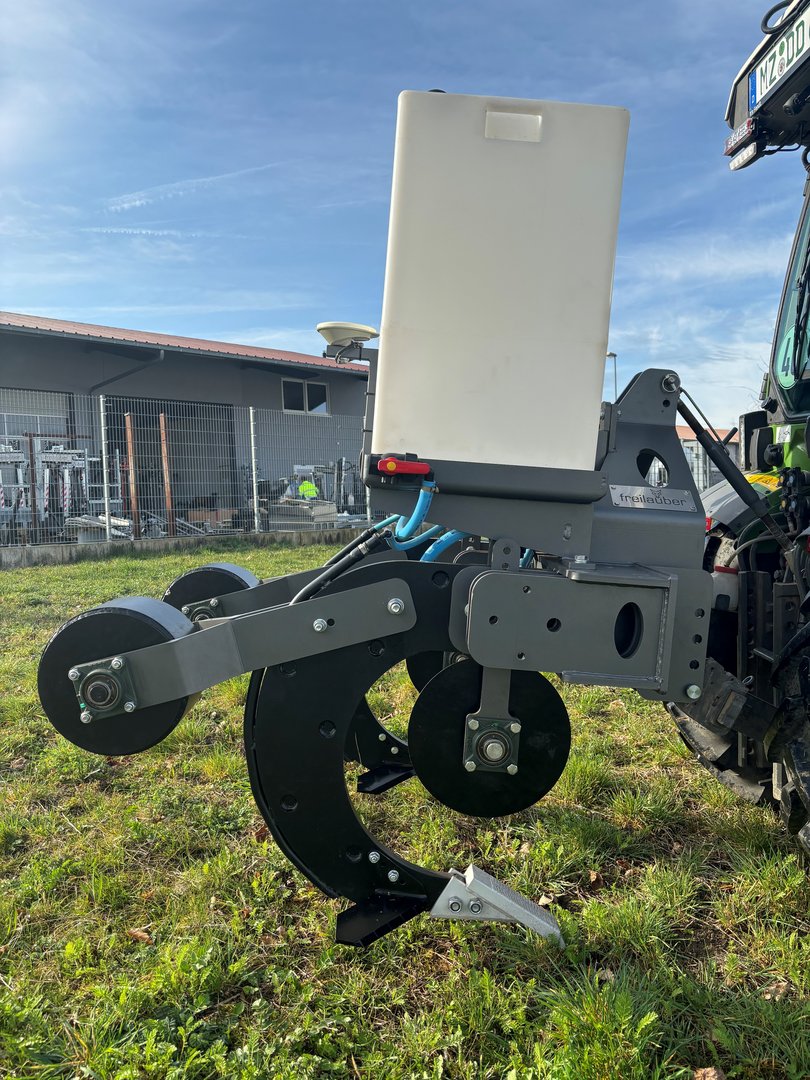

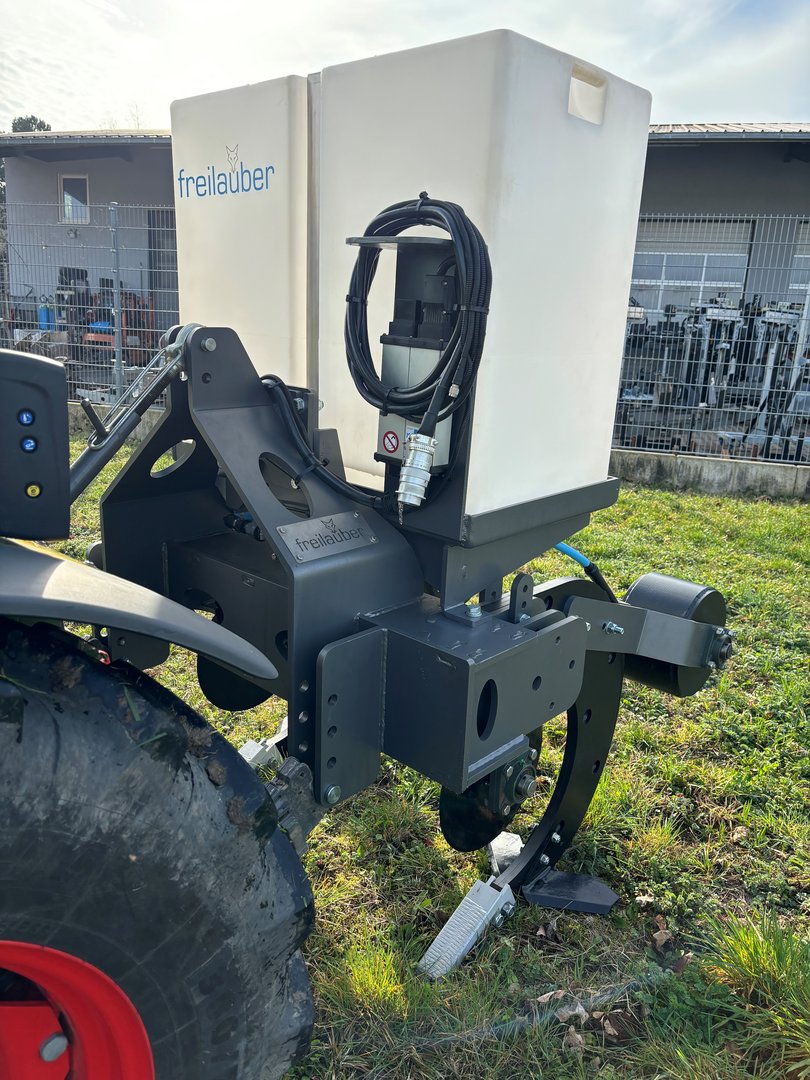

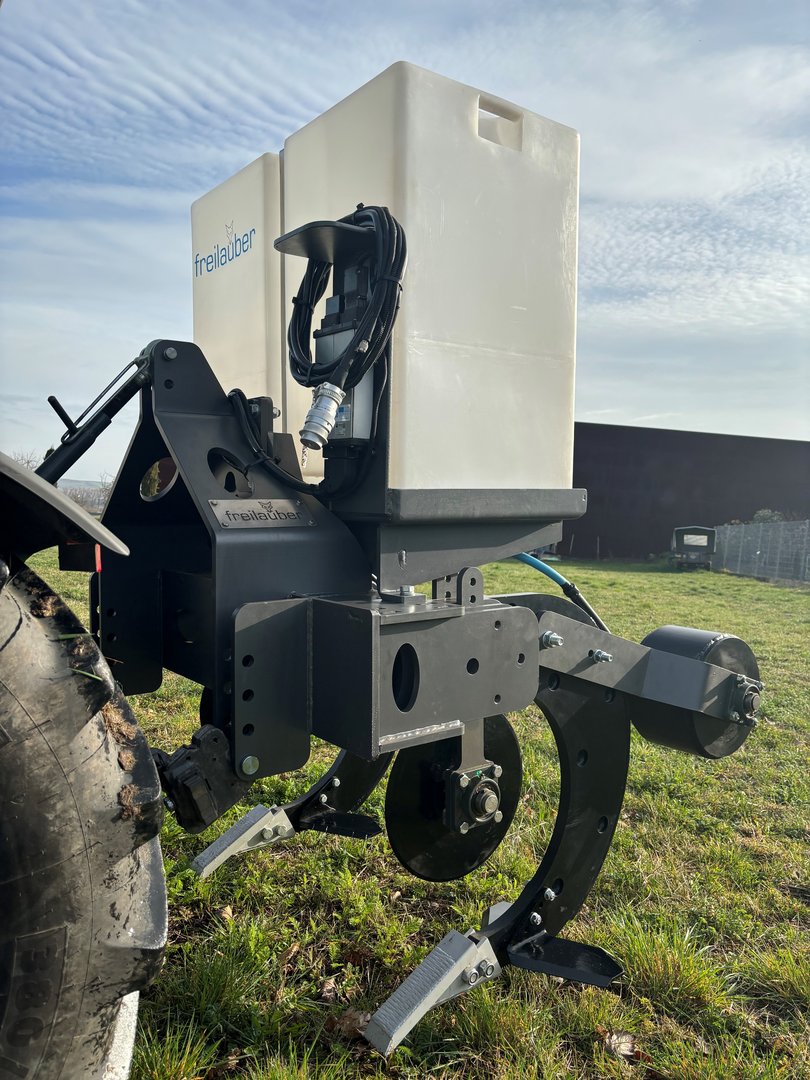

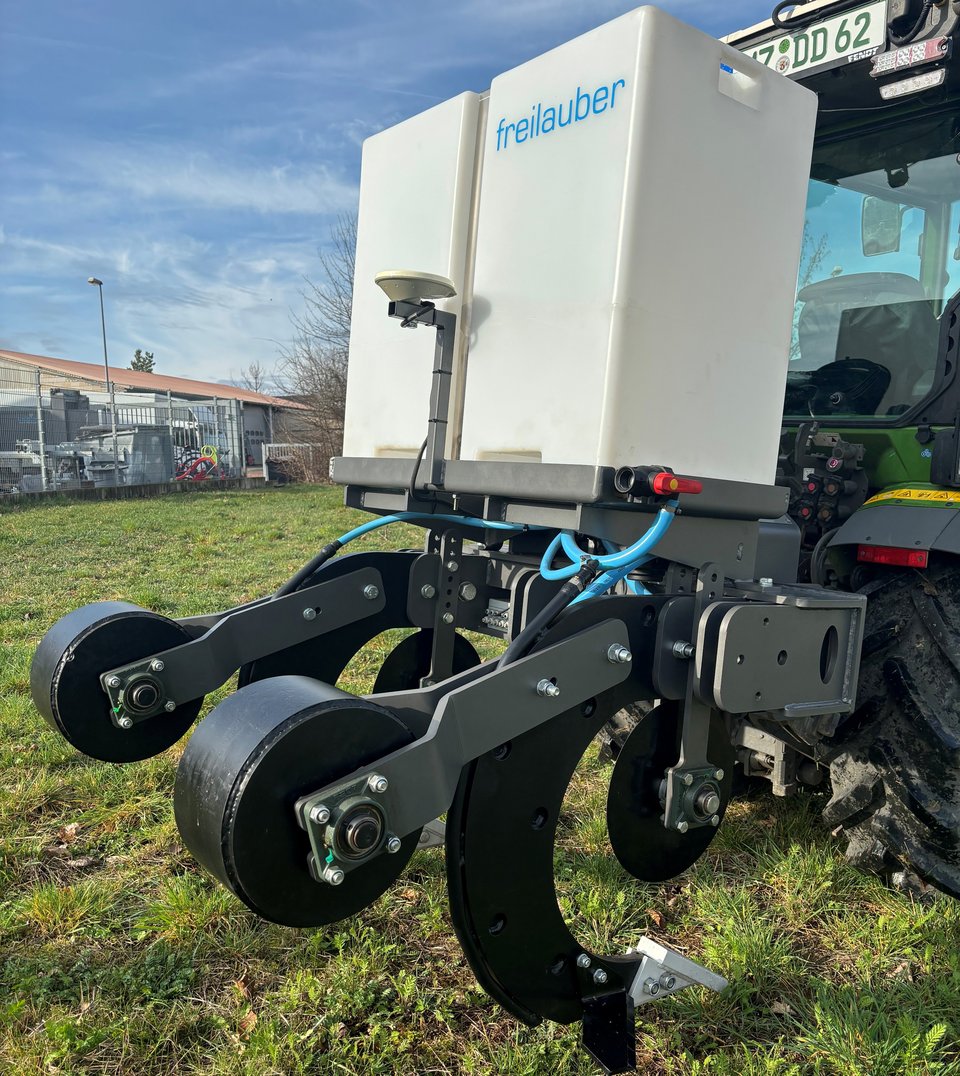

Subsoiler type Hektor for liquid fertilizer

The freilauber subsoiler type Hektor is designed for viticulture and fruit growing. It is characterized by its robust construction and is highly versatile. The subsoiler type Hektor is available with a tine count of 2 to 7 in various widths.

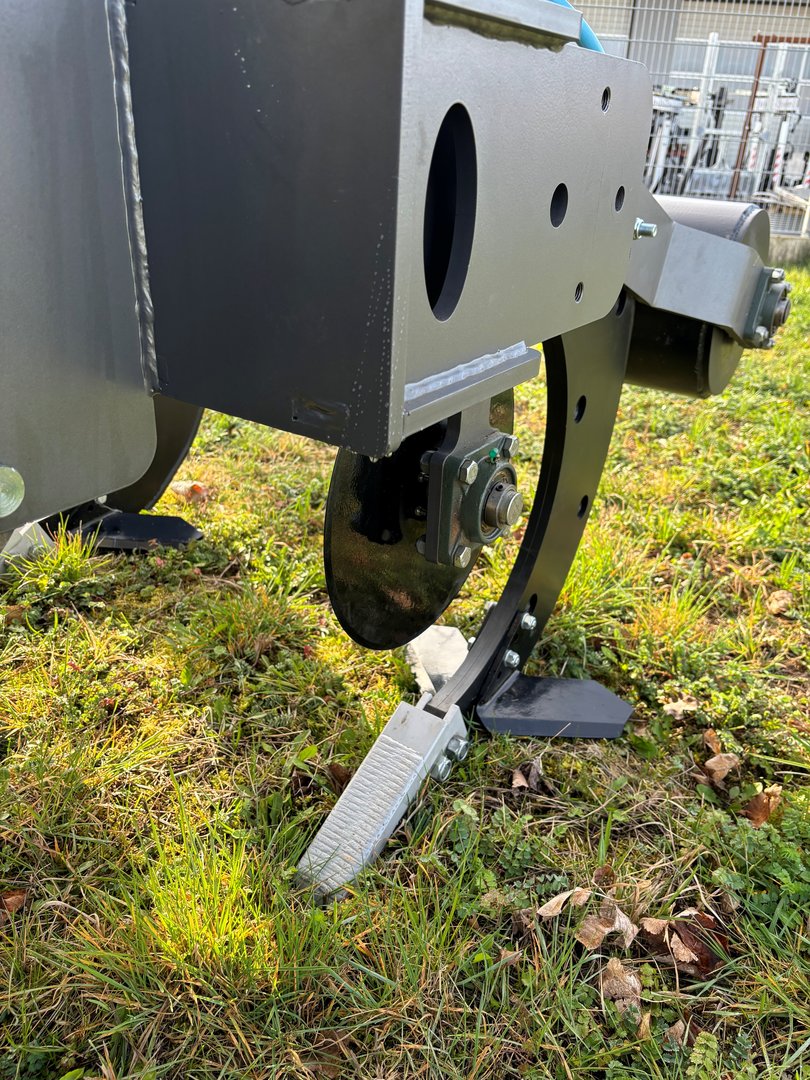

The 30 mm thick tines are designed for working depths of up to 50 cm. The penetration angle is calculated to progressively bury the tines into the soil. This reduces the stress on the frame and tractor. The tips are coated with Hardox, providing a lifespan up to 3 - 4 times longer.

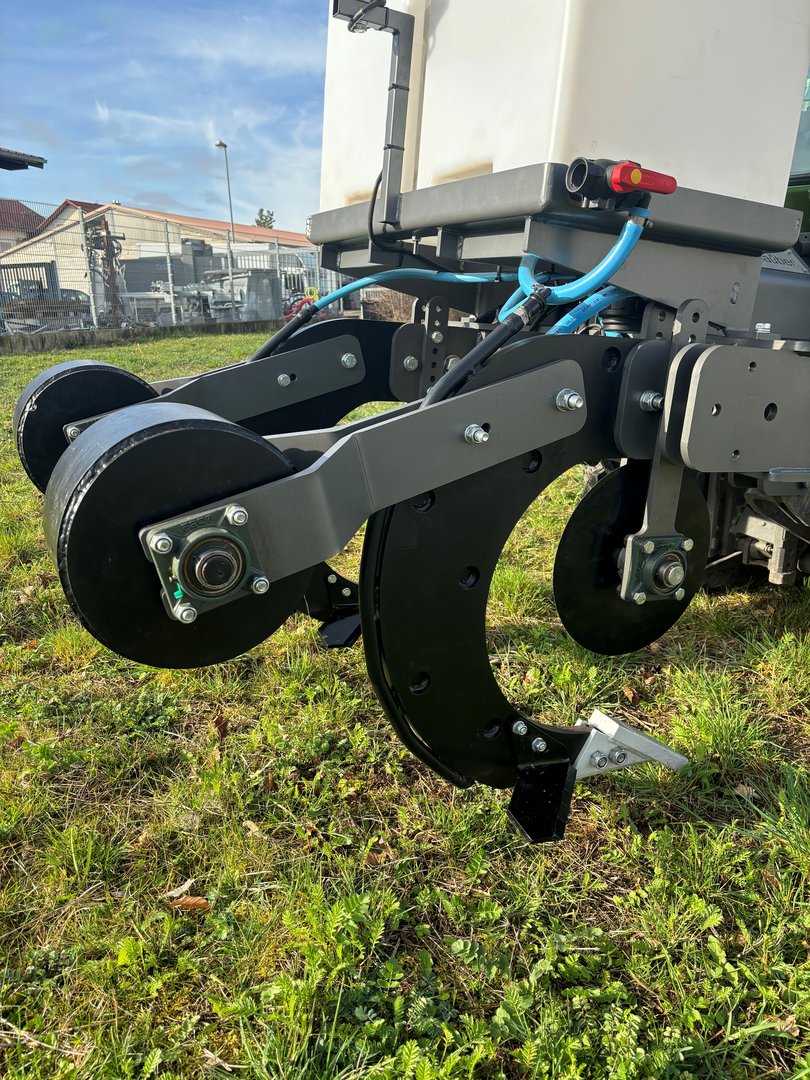

The subsoiler type Hektor is equipped with a tank, available in various volume sizes. Liquid fertilizer is directed into the soil through an electric pump via a pipe attached to the tine. The specially developed height-adjustable press roller seals the soil immediately after penetration. The press roller is individually attached to each tine. The application rate is controlled by a nozzle. The entire unit is controlled via an ISO-Bus system, ensuring precise fertilizer application with the Hektor.
